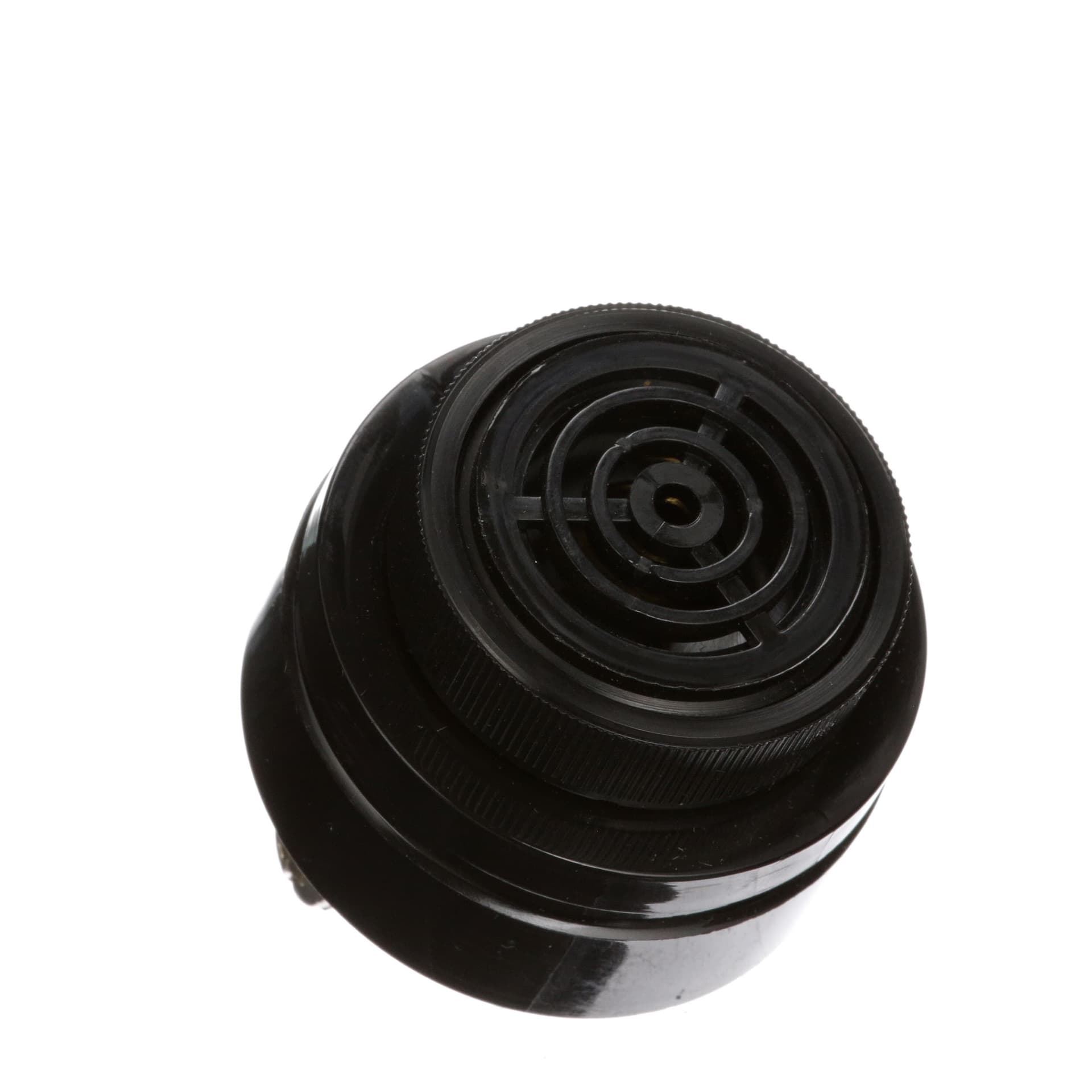

The SC628AN is a panel mount piezo alarm from Mallory Sonalert. It operates within a temperature range of -30°C to 65°C and can handle supply voltages between 6V and 28V. The device draws a maximum supply current of 30mA. The housing is made of black material and is packaged in bulk.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mallory Sonalert SC628AN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Diameter | 1.687inch |
| Frequency | 2.9kHz |
| Housing Color | Black |
| Lead Free | Contains Lead |
| Length | 34.8mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 30mA |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 6V |
| Mount | Panel |
| Operating Supply Current | 30mA |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| Weight | 59.5g |
| RoHS | Compliant |
