Mallory Sonalert
SC628DPR
Audio Indicator Piezo 6VDC 28VDC 23mA 60dBA 1600Hz to 2200Hz Panel Mount Screw Bulk
Frequency1.9kHz
Current Rating23mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628DPR technical specifications.
General
Color
Black
Current Rating
23mA
Diameter
43mm
Frequency
1.9kHz
Height
32.85mm
Input Type
DC
Length
1.69inch
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
23mA
Mount
Panel, Flush
Operating Supply Current
23mA
Package Quantity
1
Packaging
Bulk
Series
SC
Termination
Screw
DC Rated Voltage
28V
Washable
No
Weight
2.081164oz
Width
1.69inch
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628DPR Datasheet
Download the complete datasheet for Mallory Sonalert SC628DPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

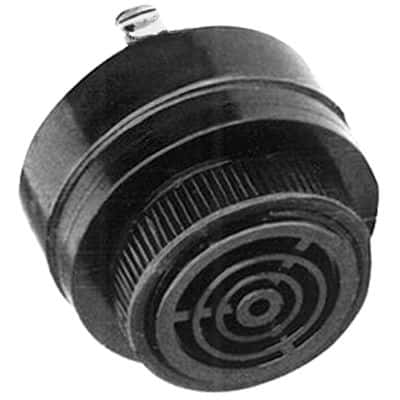

Product Images
