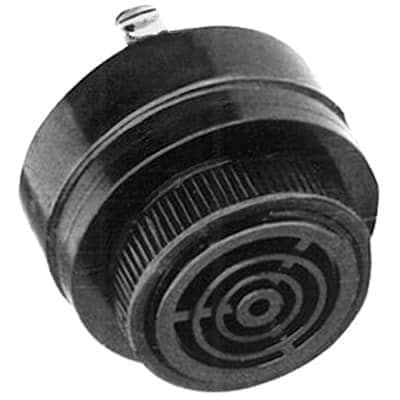

The SC628JU-1 is a DC-operated buzzer with a current rating of 27mA and a supply voltage range of 6-28V. It has a maximum operating temperature of 65°C and a minimum operating temperature of -30°C. The buzzer is designed for panel mount, flush installation and has a diameter of 43mm and a height of 32.9mm. It is packaged in bulk and has a self-resonant frequency of 2.9kHz.
Sign in to ask questions about the Mallory Sonalert SC628JU-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mallory Sonalert SC628JU-1 technical specifications.
| Color | Black |
| Current Rating | 27mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Height | 32.9mm |
| Input Type | DC |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 6V |
| Mount | Panel, Flush |
| Operating Supply Current | 27mA |
| Outside Diameter | 42.85mm |
| Packaging | Bulk |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| DC Rated Voltage | 6V |
| RoHS | Compliant |
