Frequency2.9kHz
Current Rating18mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628LR technical specifications.
General
Approvals
UL
Current Rating
18mA
Diameter
43mm
Frequency
2.9kHz
Height
32.9mm
Input Type
DC
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
18mA
Max Supply Voltage
28V
Min Supply Voltage
6V
Mount
Panel, Flush
Operating Supply Current
18mA
Outside Diameter
42.85mm
Packaging
Bulk
Self Resonant Frequency
2.9kHz
Series
SC
Termination
Wire Leads
DC Rated Voltage
6V
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628LR Datasheet
Download the complete datasheet for Mallory Sonalert SC628LR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

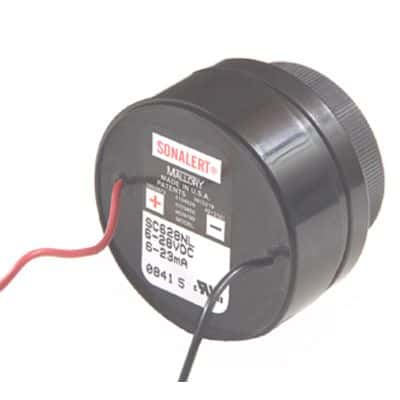

Product Images
