Frequency2.9kHz
Current Rating16mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628M technical specifications.
General
| Current Rating | 16mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Housing Color | Black |
| Input Type | DC |
| Length | 9.52mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 16mA |
| Mount | Panel, Flush |
| Operating Supply Current | 16mA |
| Packaging | Bulk |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| DC Rated Voltage | 6V |
Compliance
| RoHS | Not Compliant |
Datasheet
Mallory Sonalert SC628M Datasheet
Download the complete datasheet for Mallory Sonalert SC628M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

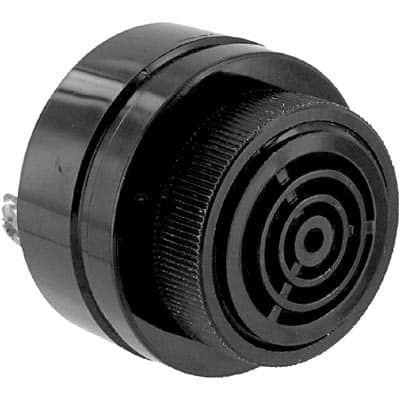

Product Images
