Frequency2.9kHz
Current Rating22mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628MA technical specifications.
General
| Current Rating | 22mA |
| Diameter | 43mm |
| Frequency | 2.9kHz |
| Height | 49.43mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 21.5mA |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 6V |
| Mount | Panel, Flush |
| Operating Supply Current | 23mA |
| Outside Diameter | 42.85mm |
| Package Quantity | 1 |
| Packaging | Bulk |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| Voltage Rating (AC) | 6V |
| Washable | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Mallory Sonalert SC628MA Datasheet
Download the complete datasheet for Mallory Sonalert SC628MA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

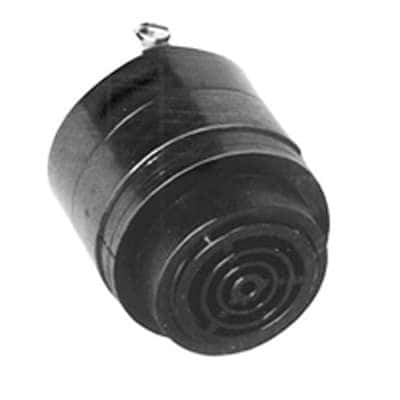

Product Images
