Mallory Sonalert
SC628N
Audio Indicator Piezo 6VDC 28VDC 16mA 80dBA 2400Hz to 3400Hz Panel Mount Screw Bulk
Frequency2.9kHz
MountingPanel
Quick Jump:
Technical Specifications
Mallory Sonalert SC628N technical specifications.
General
| Color | Black |
| Diameter | 1.687inch |
| Frequency | 2.9kHz |
| Height | 32.6mm |
| Housing Color | Black |
| Input Type | DC |
| Lead Free | Contains Lead |
| Length | 32.5mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 16mA |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 6V |
| Mount | Panel |
| Operating Supply Current | 16mA |
| Outside Diameter | 42.85mm |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 2.9kHz |
| Series | SC |
| Termination | Screw |
| Weight | 42.5g |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert SC628N Datasheet
Download the complete datasheet for Mallory Sonalert SC628N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

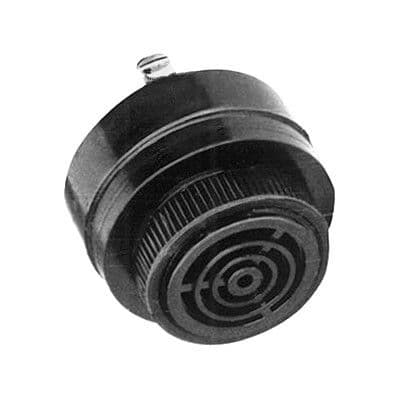

Product Images
