Frequency2kHz
Current Rating16mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628NDP technical specifications.
General
Color
Black
Current Rating
16mA
Diameter
43mm
Frequency
2kHz
Height
46.74mm
Input Type
DC
Lead Free
Contains Lead
Length
35.1mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
16mA
Max Supply Voltage
28V
Min Supply Voltage
6V
Mount
Panel, Flush
Operating Supply Current
16mA
Outside Diameter
42.85mm
Packaging
Bulk
Reach SVHC Compliant
Unknown
Self Resonant Frequency
2kHz
Series
SC
Termination
Screw
DC Rated Voltage
6V
Weight
59.5g
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628NDP Datasheet
Download the complete datasheet for Mallory Sonalert SC628NDP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

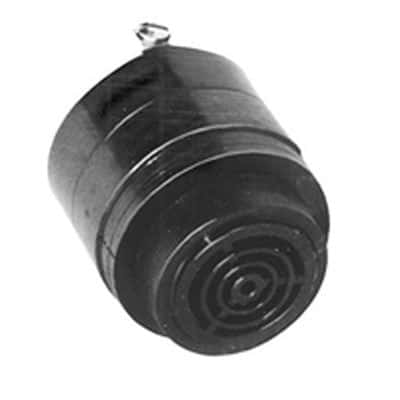

Product Images
