Frequency2.9kHz
Current Rating16mA
MountingPanel, Flush
Quick Jump:
Technical Specifications
Mallory Sonalert SC628NPR technical specifications.
General
Current Rating
16mA
Diameter
43mm
Frequency
2.9kHz
Height
32.85mm
Input Type
DC
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
16mA
Max Supply Voltage
28V
Min Supply Voltage
6V
Mount
Panel, Flush
Operating Supply Current
16mA
Outside Diameter
42.85mm
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Self Resonant Frequency
2.9kHz
Series
SC
Termination
Screw
DC Rated Voltage
28V
Washable
No
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert SC628NPR Datasheet
Download the complete datasheet for Mallory Sonalert SC628NPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

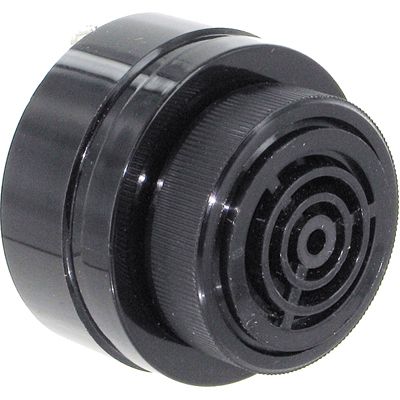

Product Images
