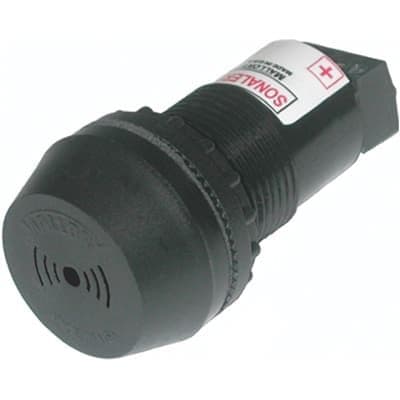

Mallory Sonalert
ZA028MDCT
Audio Indicator Piezo 16VDC/16VAC 28VDC/28VAC 40mA 85dBA 2800Hz to 3800Hz Panel Mount Bulk
Frequency3.3kHz
Current Rating40mA
MountingPanel
Quick Jump:
Technical Specifications
Mallory Sonalert ZA028MDCT technical specifications.
General
Current Rating
40mA
Diameter
30.7mm
Frequency
3.3kHz
Input Type
DC
Length
56.7mm
Max Operating Temperature
65°C
Min Operating Temperature
-30°C
Max Supply Current
40mA
Max Supply Voltage (DC)
28V
Min Supply Voltage (DC)
16V
Mount
Panel
Operating Supply Current
40mA
Package Quantity
1
Packaging
Bulk
Reach SVHC Compliant
Unknown
Series
ZA
Termination
Terminal Block
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
Mallory Sonalert ZA028MDCT Datasheet
Download the complete datasheet for Mallory Sonalert ZA028MDCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
