Mallory Sonalert
ZA028MDMP1
Audio Indicator Piezo 16VDC 28VDC 40mA 75dBA 3400Hz to 4400Hz Panel Mount Quick Connect Bulk
Frequency3.3kHz
Voltage Rating28V
Current Rating40mA
MountingPanel
Quick Jump:
Technical Specifications
Mallory Sonalert ZA028MDMP1 technical specifications.
General
| Current Rating | 40mA |
| Frequency | 3.3kHz |
| Input Type | DC |
| Length | 43.4mm |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage (DC) | 28V |
| Min Supply Voltage (DC) | 16V |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 16V |
| Mount | Panel |
| Operating Supply Current | 40mA |
| Outside Diameter | 30.74mm |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Self Resonant Frequency | 3.3kHz |
| Series | ZA |
| Termination | Terminal Block |
| Voltage Rating | 28V |
| Width | 30.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert ZA028MDMP1 Datasheet
Download the complete datasheet for Mallory Sonalert ZA028MDMP1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

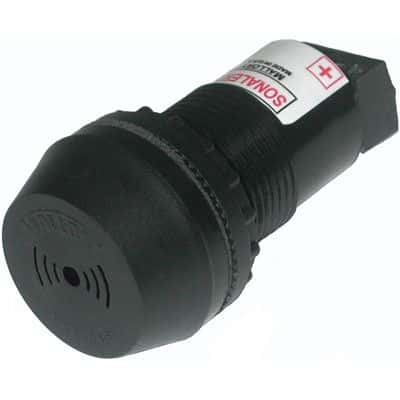

Product Images
