Frequency3.9kHz
Current Rating40mA
MountingPanel
Quick Jump:
Technical Specifications

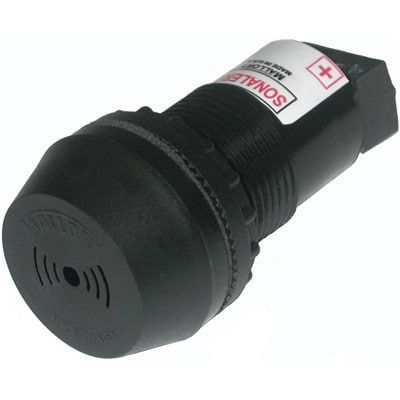

Mallory Sonalert ZA120SACT technical specifications.
General
| Current Rating | 40mA |
| Diameter | 30.7mm |
| Frequency | 3.9kHz |
| Input Type | AC |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 40mA |
| Max Supply Voltage | 120V |
| Min Supply Voltage | 48V |
| Mount | Panel |
| Operating Supply Current | 40mA |
| Reach SVHC Compliant | Unknown |
| Series | ZA |
| Termination | Terminal Block |
| Voltage Rating (AC) | 48V |
Compliance
| RoHS | Compliant |
Datasheet
Mallory Sonalert ZA120SACT Datasheet
Download the complete datasheet for Mallory Sonalert ZA120SACT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
