16Kb Non-Volatile Static Random-Access Memory (NVSRAM) with a 2K x 8 organization. Features an 8-bit address bus and 8-bit data bus for parallel interface operation. Offers a maximum access time of 100ns and operates from a 5V supply voltage. Packaged in a 24-pin EDIP for through-hole mounting, this RoHS compliant component is suitable for applications requiring data retention without power.
Frequency150GHz
PackageDIP
Current75mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1220AD-150+ technical specifications.
General
| Access Time | 150ns |
| Access Time-Max | 100ns |
| Address Bus Width | 8b |
| Package/Case | DIP |
| Data Bus Width | 8b |
| Density | 16Kb |
| Frequency | 150GHz |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 34.04mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Words | 2000 |
| Operating Supply Current | 75mA |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 75mA |
| Width | 18.29mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1220AD-150+ Datasheet
Download the complete datasheet for Maxim DS1220AD-150+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

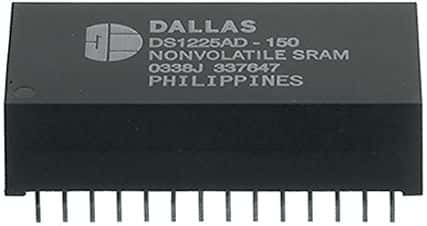

Product Images
