16Kb Non-Volatile Static RAM (NVSRAM) with a 200ns access time. This parallel interface memory features an 8-bit data bus width and a 2K x 8 organization. Operating at 5V, it supports a supply voltage range of 4.5V to 5.5V and has an operating current of 75mA. Packaged in a 24-pin EDIP for through-hole mounting, this RoHS compliant component operates between 0°C and 70°C.
Frequency200GHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1220AD-200+ technical specifications.
General
| Access Time | 200ns |
| Access Time-Max | 200ns |
| Data Bus Width | 8b |
| Density | 16Kb |
| Frequency | 200GHz |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 34.04mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , NVSRAM, RAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 75mA |
| Operating Supply Voltage | 5V |
| Organization | 2KX8 |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 18.29mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1220AD-200+ Datasheet
Download the complete datasheet for Maxim DS1220AD-200+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

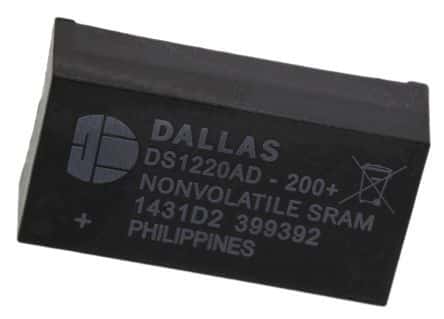

Product Images
