256Kb Non-Volatile Static RAM (NVSRAM) with a 120ns access time. Features an 8-bit data bus, parallel interface, and 32K x 8 organization. Operates from a 4.5V to 5.5V supply voltage, with a typical operating voltage of 5V and current draw of 85mA. Packaged in a 28-pin EDIP for through-hole mounting, with dimensions of 39.12mm length, 18.8mm width, and 9.4mm height. This RoHS compliant component operates within a temperature range of 0°C to 70°C.
Frequency120GHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1230Y-120+ technical specifications.
General
Access Time
120ns
Access Time-Max
120ns
Package/Case
DIP
Data Bus Width
8b
Density
256Kb
Frequency
120GHz
Height
9.4mm
Interface
Parallel
Lead Free
Lead Free
Length
39.12mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
Non-Volatile, , NVSRAM
Min Supply Voltage
4.5V
Mount
Through Hole
Operating Supply Current
85mA
Operating Supply Voltage
5V
Organization
32KX8
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Width
18.8mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1230Y-120+ Datasheet
Download the complete datasheet for Maxim DS1230Y-120+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

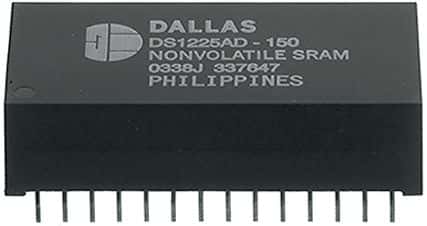

Product Images
