256Kb NVSRAM with 200ns access time, featuring an 8-bit data bus and 15-bit address bus. This non-volatile RAM operates with a 5V supply voltage, supporting a 32K x 8 organization. Packaged in a 28-pin DIP for through-hole mounting, it offers parallel interface connectivity and is RoHS compliant.
Frequency200GHz
PackageDIP
Current85mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1230Y-200+ technical specifications.
General
Access Time
200ns
Access Time-Max
200ns
Address Bus Width
15b
Package/Case
DIP
Data Bus Width
8b
Density
256Kb
Frequency
200GHz
Height
9.35mm
Interface
Parallel
Lead Free
Lead Free
Length
39.37mm
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
Non-Volatile, , NVSRAM, RAM
Min Operating Temperature
0°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Words
32000
Operating Supply Current
85mA
Operating Supply Voltage
5V
Organization
32KX8
Package Quantity
12
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
85mA
Termination
Through Hole
Width
18.8mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1230Y-200+ Datasheet
Download the complete datasheet for Maxim DS1230Y-200+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

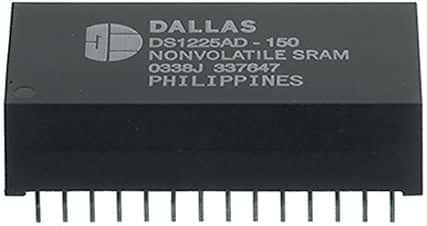

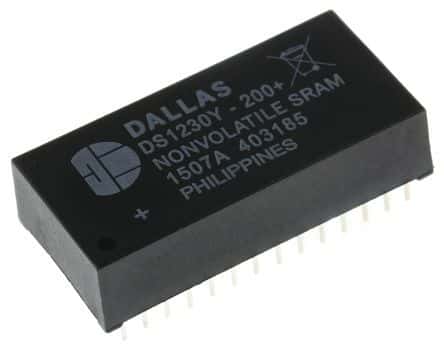

Product Images
