Power supply monitor IC featuring a single voltage monitoring channel with a threshold voltage of 4.62V. Operates within a supply voltage range of 4.5V to 5.5V, with a typical operating supply voltage of 5V and a maximum supply current of 2mA. Provides active high/active low reset functionality with a 150ms reset timeout. Packaged in a PDIP through-hole mount, this RoHS compliant component operates from 0°C to 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1231-20+ technical specifications.
General
| Package/Case | PDIP |
| Height | 4.45mm |
| Lead Free | Lead Free |
| Length | 9.91mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Reset Threshold Voltage | 4.74V |
| Min Reset Threshold Voltage | 4.5V |
| Max Supply Current | 2mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 500uA |
| Operating Supply Voltage | 5V |
| Overvoltage Threshold | 5.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| Reset | Active High/Active Low |
| Reset Timeout | 150ms |
| RoHS Compliant | Yes |
| Threshold Voltage | 4.62V |
| Type | Simple Reset/Power-On Reset, Power Supply Monitor |
| Undervoltage Threshold | 3.3V |
| Watchdog Timer | No |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1231-20+ Datasheet
Download the complete datasheet for Maxim DS1231-20+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

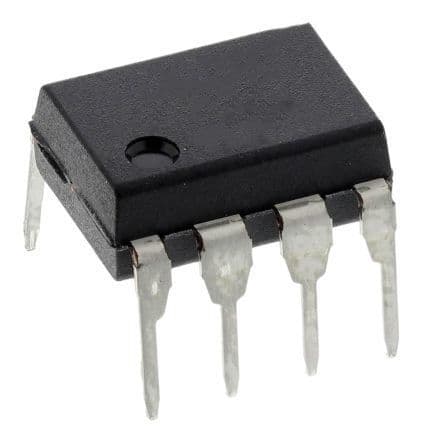

Product Images
