Supervisory circuit IC with active-low reset, monitoring a single voltage. Features a reset timeout of 250ms and an operating supply voltage of 5V. Minimum supply voltage is 1.2V, with a maximum of 5.5V. Reset threshold voltage ranges from 4.25V to 4.49V. This lead-free, RoHS-compliant component is housed in a TO-92 package for through-hole mounting, with a maximum operating temperature of 85°C.
PackageTO-92
Current50uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1233-10+ technical specifications.
General
| Package/Case | TO-92 |
| Height | 4.95mm |
| Lead Free | Lead Free |
| Length | 4.95mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8mA |
| Max Reset Threshold Voltage | 4.49V |
| Min Reset Threshold Voltage | 4.25V |
| Max Supply Current | 50uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.2V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 50uA |
| Operating Supply Voltage | 5V |
| Overvoltage Threshold | 4.49V |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Reset | Active Low |
| Reset Timeout | 250ms |
| RoHS Compliant | Yes |
| Series | EconoReset |
| Supply Current | 50uA |
| Termination | Through Hole |
| Threshold Voltage | 4.375V |
| Type | Simple Reset/Power-On Reset, Monitor |
| Undervoltage Threshold | 4.25V |
| Watchdog Timer | No |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1233-10+ Datasheet
Download the complete datasheet for Maxim DS1233-10+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

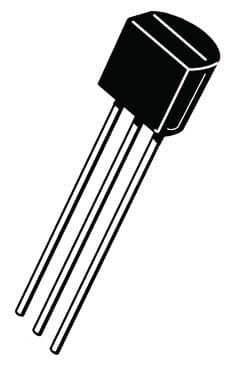

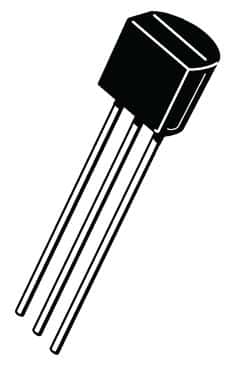

Product Images
