Supervisory circuit IC with active-low reset, featuring a single voltage monitoring capability. Operating supply voltage ranges from 1.2V to 5.5V, with a typical operating supply current of 50µA. Reset threshold voltage is set between 2.8V and 2.97V, with a 250ms reset timeout. This through-hole component is packaged in TO-92, measuring 4.95mm in height, 3.94mm in width, and 4.95mm in length. It is RoHS compliant and lead-free, suitable for operation between -40°C and 85°C.
PackageTO-92
Current50uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1233A-10+ technical specifications.
General
Package/Case
TO-92
Height
4.95mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
8mA
Max Reset Threshold Voltage
2.97V
Min Reset Threshold Voltage
2.8V
Max Supply Current
50uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Through Hole
Number of Voltages Monitored
1
Operating Supply Current
50uA
Operating Supply Voltage
5V
Overvoltage Threshold
2.97V
Packaging
Bulk
Reach SVHC Compliant
Unknown
Reset
Active Low
Reset Timeout
250ms
RoHS Compliant
Yes
Series
EconoReset
Supply Current
50uA
Threshold Voltage
2.88V
Type
Simple Reset/Power-On Reset, Monitor
Undervoltage Threshold
2.8V
Watchdog Timer
No
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1233A-10+ Datasheet
Download the complete datasheet for Maxim DS1233A-10+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

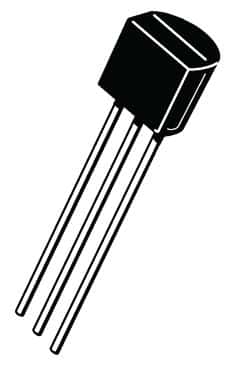

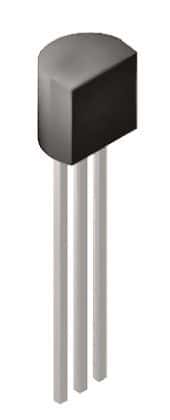

Product Images
