Supervisory circuit IC with a 4.375V threshold, featuring active-low reset and a 250ms reset timeout. Monitors a single voltage with undervoltage detection at 4.25V and overvoltage detection at 4.49V. Operates from 1.2V to 5.5V with a typical supply current of 50uA. Packaged in a SOT-223-3 surface mount case, this RoHS compliant component is designed for reliable power management.
PackageSOT-223-3
Current50uA
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications
Maxim DS1233Z-10+ technical specifications.
General
Package/Case
SOT-223-3
Height
1.8mm
Lead Free
Lead Free
Length
6.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reset Threshold Voltage
4.49V
Min Reset Threshold Voltage
4.25V
Max Supply Current
50uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.2V
Mount
Surface Mount, Through Hole
Number of Voltages Monitored
1
Operating Supply Current
50uA
Operating Supply Voltage
5V
Overvoltage Threshold
4.49V
Package Quantity
75
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
Reset
Active Low
Reset Timeout
250ms
RoHS Compliant
Yes
Series
EconoReset
Supply Current
50uA
Threshold Voltage
4.375V
Type
Simple Reset/Power-On Reset
Undervoltage Threshold
4.25V
Watchdog Timer
No
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1233Z-10+ Datasheet
Download the complete datasheet for Maxim DS1233Z-10+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

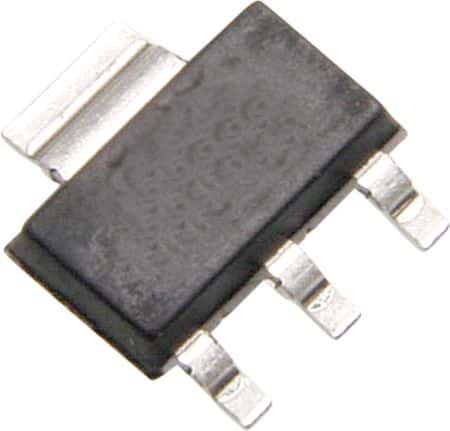

Product Images
