1Mb Non-Volatile Static RAM (NVSRAM) with a 128K x 8 organization, featuring a 100ns access time. This parallel interface memory operates with a 5V supply voltage, ranging from 4.5V to 5.5V, and consumes 85mA during operation. The component utilizes an 8-bit data bus and a 17-bit address bus, supporting through-hole mounting in a 32-pin DIP package. It is RoHS compliant and operates within a temperature range of 0°C to 70°C.
Frequency100GHz
PackageDIP
Current85mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1245Y-100+ technical specifications.
General
| Access Time | 100ns |
| Access Time-Max | 100ns |
| Address Bus Width | 17b |
| Package/Case | DIP |
| Data Bus Width | 8b |
| Density | 1Mb |
| Frequency | 100GHz |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 43.69mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | Non-Volatile, , NVSRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Words | 128000 |
| Operating Supply Current | 85mA |
| Operating Supply Voltage | 5V |
| Organization | 128KX8 |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 85mA |
| Width | 18.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1245Y-100+ Datasheet
Download the complete datasheet for Maxim DS1245Y-100+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

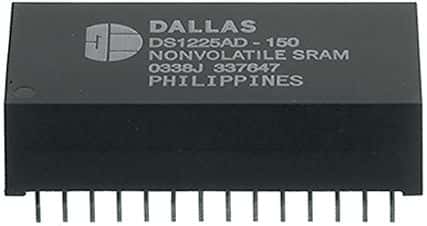

Product Images
