1Mb Non-Volatile Static RAM (NVSRAM) with a parallel interface, featuring an 8-bit data bus width and 128K x 8 organization. Offers a fast 70ns access time and operates from a 4.5V to 5.5V supply range, with a typical operating voltage of 5V. Packaged in a 32-pin EDIP for through-hole mounting, this RoHS compliant component is designed for demanding applications.
Frequency70GHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1245Y-70+ technical specifications.
General
| Access Time | 70ns |
| Access Time-Max | 70ns |
| Package/Case | DIP |
| Data Bus Width | 8b |
| Density | 1Mb |
| Frequency | 70GHz |
| Height | 10.92mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 44.19mm |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Mb |
| Memory Type | Non-Volatile, , NVSRAM, RAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Current | 85mA |
| Operating Supply Voltage | 5V |
| Organization | 128KX8 |
| Package Quantity | 11 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 18.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1245Y-70+ Datasheet
Download the complete datasheet for Maxim DS1245Y-70+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

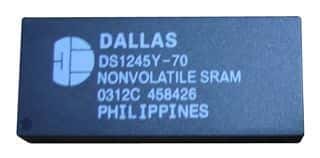

Product Images
