Volatile dual digital potentiometer offering 10 kΩ resistance with 20% tolerance. Features a linear taper and 256 positions for precise control. Operates with a supply voltage range of 4.5V to 5.5V and a dual supply voltage of 5V. This integrated circuit supports a 3-wire serial interface and a maximum operating frequency of 10MHz. Packaged in PDIP, it is lead-free and RoHS compliant.
Frequency10MHz
PackagePDIP
Current22uA
Resistance10kR
Quick Jump:
Technical Specifications
Maxim DS1267-010+ technical specifications.
General
| Package/Case | PDIP |
| Dual Supply Voltage | 5V |
| Frequency | 10MHz |
| Height | 4.45mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 19.43mm |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Volatile, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of Circuits | 2 |
| Number of Positions | 256 |
| Number of Taps | 256 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Supply Current | 22uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1267-010+ Datasheet
Download the complete datasheet for Maxim DS1267-010+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

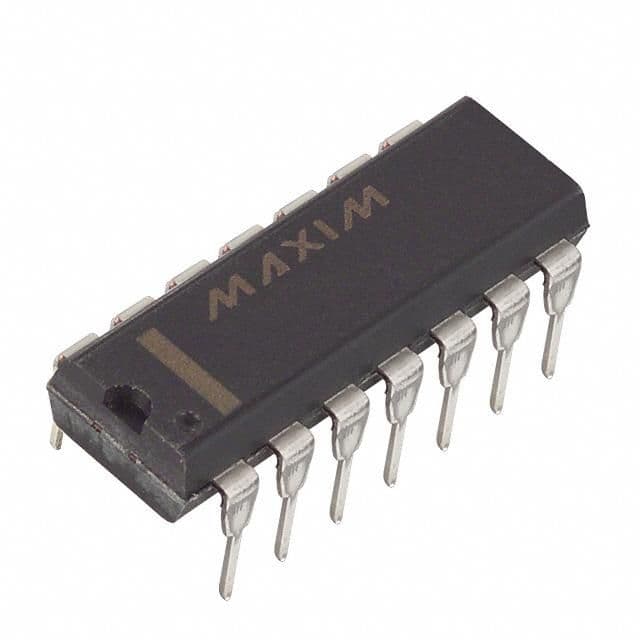

Product Images
