Volatile dual digital potentiometer, 100 kΩ resistance with 20% tolerance. Features a linear taper and 256 positions. Operates with a supply voltage range of 4.5V to 5.5V, with a typical dual supply of 5V. Interface is serial, supporting up to 10MHz operation. Packaged in PDIP, this RoHS compliant component is suitable for a wide temperature range from -40°C to 85°C.
Frequency10MHz
PackagePDIP
Current22uA
Resistance100kR
Quick Jump:
Technical Specifications
Maxim DS1267-100+ technical specifications.
General
Package/Case
PDIP
Dual Supply Voltage
5V
Frequency
10MHz
Height
4.45mm
Interface
Serial
Lead Free
Lead Free
Length
19.43mm
Max Operating Temperature
85°C
Memory Type
Volatile,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Circuits
2
Number of Positions
256
Number of Taps
256
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
100kR
Resistance Tolerance
20%
Resistor Type
Potentiometer
RoHS Compliant
Yes
Supply Current
22uA
Taper
Linear
Tolerance
20%
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1267-100+ Datasheet
Download the complete datasheet for Maxim DS1267-100+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

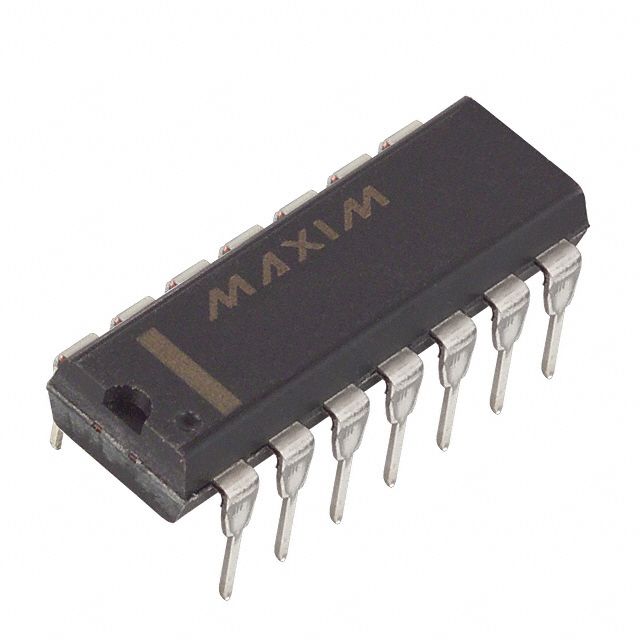

Product Images
