Real-time clock integrated circuit featuring a parallel interface and DIP package. Provides YY-MM-DD-dd date format and HH:MM:SS (12/24 hr) time format. Includes 114B of RAM memory. Operates from a 4.5V to 5.5V supply voltage with a typical operating current of 15mA. Designed for through-hole mounting with a maximum operating temperature of 70°C.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS12887+ technical specifications.
General
| Package/Case | DIP |
| Date Format | YY-MM-DD-dd |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 34.04mm |
| Logic Function | Clock |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 114B |
| Memory Type | RAM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Outputs | 8 |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Through Hole |
| Time Format | HH:MM:SS (12/24 hr) |
| Width | 18.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS12887+ Datasheet
Download the complete datasheet for Maxim DS12887+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

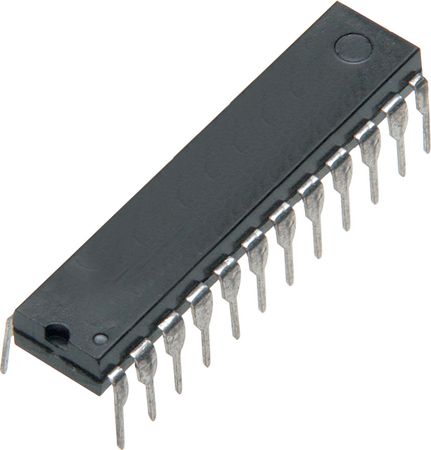

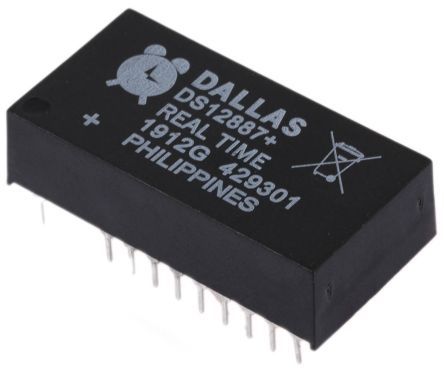

Product Images
