Real-time clock (RTC) IC with integrated 114B RAM. Features a 32.768kHz frequency and parallel interface for clock and date functions. Operates from a 4.5V to 5.5V supply voltage, with a standard 5V operating voltage. Packaged in a 24-pin DIP for through-hole mounting, with dimensions of 34.04mm length, 18.29mm width, and 9.4mm height. Supports YY-MM-DD-dd date format and HH:MM:SS time format. RoHS compliant.
Frequency32.768kHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS12887A+ technical specifications.
General
Package/Case
DIP
Date Format
YY-MM-DD-dd
Frequency
32.768kHz
Height
9.4mm
Interface
Parallel
Lead Free
Lead Free
Length
34.04mm
Logic Function
Clock
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Memory Size
114B
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Outputs
8
Operating Supply Voltage
5V
Package Quantity
14
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Time Format
HH:MM:SS
Width
18.29mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS12887A+ Datasheet
Download the complete datasheet for Maxim DS12887A+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

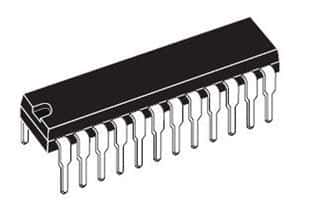

Product Images
