Real Time Clock (RTC) IC, DIP package, featuring a parallel interface for clock and calendar functions. Operates with a 5V supply voltage, ranging from 4.5V to 5.5V, and supports YY-MM-DD-dd date and HH:MM:SS (12/24 hr) time formats. Includes 113B of memory, with a maximum operating temperature of 70°C and a minimum of 0°C. Through-hole mount design, RoHS compliant, and lead-free.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS12C887+ technical specifications.
General
| Package/Case | DIP |
| Date Format | YY-MM-DD-dd |
| Height | 9.4mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 34.04mm |
| Logic Function | Clock |
| Max Operating Temperature | 70°C |
| Memory Size | 113B |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Operating Supply Voltage | 5V |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Time Format | HH:MM:SS (12/24 hr) |
| Width | 18.29mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS12C887+ Datasheet
Download the complete datasheet for Maxim DS12C887+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

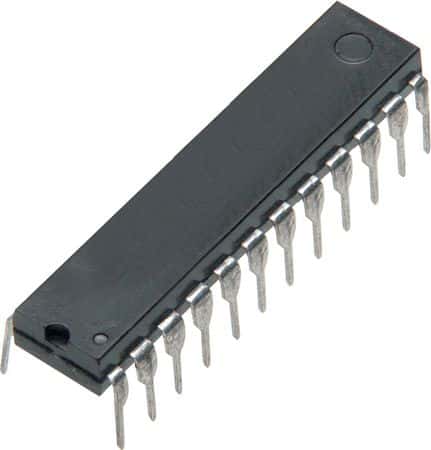

Product Images
