Real-Time Clock (RTC) IC with trickle charge capability. Features a 3-wire serial interface and supports YY-MM-DD-dd date format and HH:MM:SS time format. Operates from 2V to 5.5V with a typical supply current of 1.2mA. Packaged in a PDIP through-hole mount with dimensions of 9.91mm length, 7.87mm width, and 4.45mm height. RoHS compliant with a maximum operating temperature of 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1302+ technical specifications.
General
Package/Case
PDIP
Date Format
YY-MM-DD-dd
Height
4.45mm
Interface
Serial, 3-WIRE
Lead Free
Lead Free
Length
9.91mm
Logic Function
Clock
Max Operating Temperature
70°C
Memory Size
31B
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Through Hole
Operating Supply Current
1.2mA
Operating Supply Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Time Format
HH:MM:SS
Weight
0.032805oz
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim DS1302+ Datasheet
Download the complete datasheet for Maxim DS1302+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

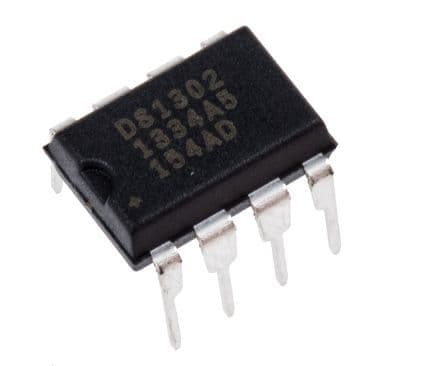

Product Images
