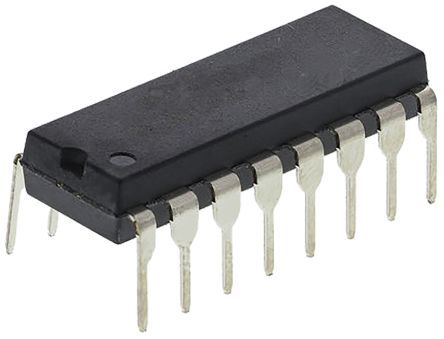

Real-time clock (RTC) integrated circuit with SPI and serial interface. Features a 3-wire interface, 32.8kHz frequency, and 96B memory. Operates from 2V to 5.5V supply voltage, with a temperature range of 0°C to 70°C. DIP package for through-hole mounting, supporting YY-MM-DD-dd date and HH:MM:SS time formats. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS1305+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim DS1305+ technical specifications.
| Package/Case | DIP |
| Date Format | YY-MM-DD-dd |
| Frequency | 32.8kHz |
| Height | 4.45mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 19.43mm |
| Logic Function | Clock |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 96B |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Time Format | HH:MM:SS |
| Weight | 0.057419oz |
| Width | 7.87mm |
| RoHS | Compliant |
