32-bit binary counter watchdog Real-Time Clock (RTC) with trickle charger and reset input/output. Features I²C and serial 2-wire interface, operating at 3.3V with a supply voltage range of 2.97V to 5.5V. This surface mount IC utilizes a 32.768kHz frequency and offers binary date and time formats. Designed for operation between -40°C and 85°C, it is RoHS compliant and available in a UMAX package.
Frequency32.768kHz
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS1374U-33+ technical specifications.
General
| Package/Case | UMAX |
| Date Format | Binary |
| Frequency | 32.768kHz |
| Height | 0.95mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Logic Function | Counter, Clock |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.97V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Time Format | Binary |
| Weight | 0.005051oz |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1374U-33+ Datasheet
Download the complete datasheet for Maxim DS1374U-33+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

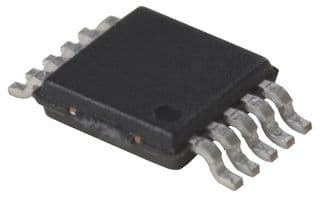

Product Images
