Digital thermometer with 12-bit resolution, offering precise temperature sensing from -55°C to 125°C. Features a logic interface for easy integration and operates with a supply voltage range of 2.7V to 5.5V. This SOIC-packaged component draws a typical operating current of 1mA and provides digital voltage output.
PackageSOIC
Current1mA
Quick Jump:
Technical Specifications
Maxim DS1620S+ technical specifications.
General
| Package/Case | SOIC |
| Height | 2.03mm |
| Interface | Logic |
| Lead Free | Lead Free |
| Length | 5.46mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Operating Supply Current | 1mA |
| Output Current | 4mA |
| Output Type | Digital, Voltage |
| Output Voltage | 2.4V |
| Package Quantity | 88 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Resolution | 9b |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Supply Current | 1mA |
| Termination | Through Hole |
| Width | 5.41mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1620S+ Datasheet
Download the complete datasheet for Maxim DS1620S+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

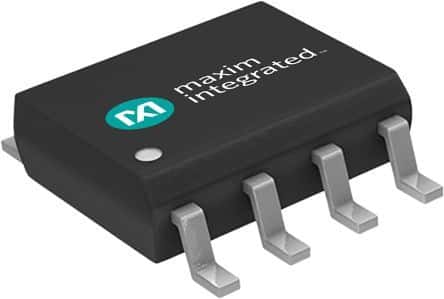

Product Images
