Digital thermometer and thermostat with 12-bit resolution, operating from a 2.7V to 5.5V supply. Features I2C and SMBus 2-wire interface for digital output. Encased in a 5mm x 4mm x 1.5mm SOIC package, this lead-free, RoHS-compliant component offers a wide operating temperature range of -55°C to 125°C.
PackageSOIC
Current1mA
Quick Jump:
Technical Specifications
Maxim DS1631Z+ technical specifications.
General
| Package/Case | SOIC |
| Height | 1.5mm |
| Interface | I2C, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Bits | 12 |
| Operating Supply Current | 1mA |
| Output | DIGITAL |
| Output Type | Digital, I2C, Voltage |
| Output Voltage | 2.4V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Supply | 5.5V |
| Reach SVHC Compliant | Unknown |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Supply Current | 1mA |
| Termination | SMD/SMT |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1631Z+ Datasheet
Download the complete datasheet for Maxim DS1631Z+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

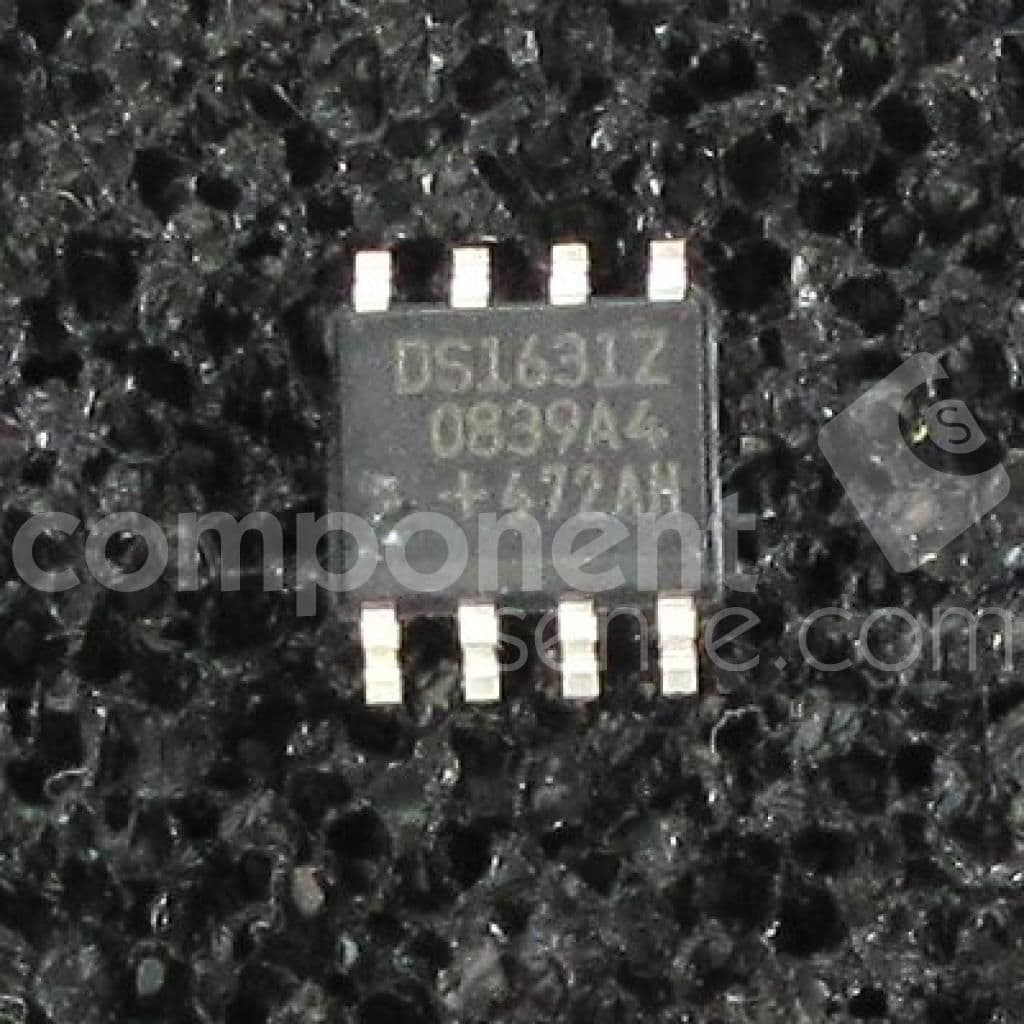

Product Images
