The DS1744P-70IND is a 32KB parallel real-time clock IC from Maxim, designed for surface mount applications. It operates within a temperature range of -40°C to 85°C and can handle supply voltages between 4.5V and 5.5V. This IC is packaged in a 34-lead module and is not RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS1744P-70IND technical specifications.
General
| Date Format | YY-MM-DD-dd |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Logic Function | Clock |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 32KB |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Time Format | HH:MM:SS (24 hr) |
Compliance
| RoHS | Not Compliant |
Datasheet
Maxim DS1744P-70IND Datasheet
Download the complete datasheet for Maxim DS1744P-70IND to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

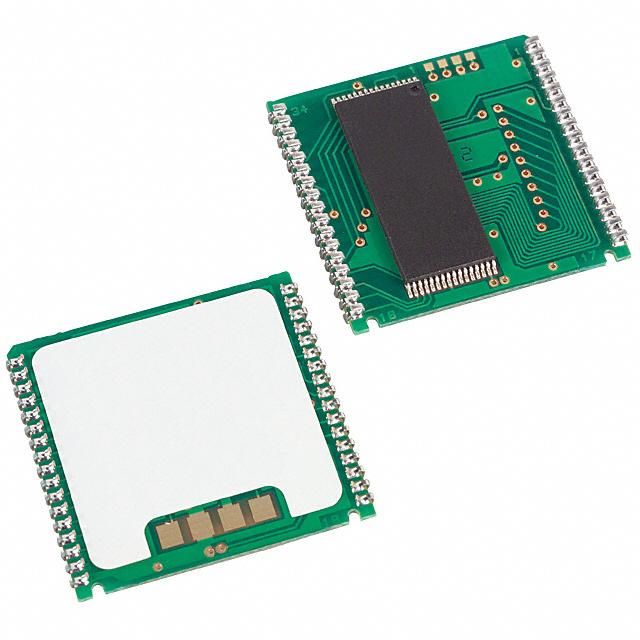

Product Images
