Single-channel supervisory circuit with active-high, totem-pole output. Features a reset threshold voltage of 3.06V, with a range from 2.98V to 3.15V. Operates within a supply voltage range of 0V to 5.5V, consuming a maximum of 35uA. Packaged in a TO-92-3 through-hole mount, this lead-free, RoHS-compliant component offers a 100ms reset timeout.
PackageTO-92-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS1817-5+ technical specifications.
General
| Package/Case | TO-92-3 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 3.15V |
| Min Reset Threshold Voltage | 2.98V |
| Max Supply Current | 35uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 0V |
| Mount | Through Hole |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 35uA |
| Output | TOTEM-POLE |
| Overvoltage Threshold | 3.15V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reset | Active High |
| Reset Timeout | 100ms |
| RoHS Compliant | Yes |
| Series | EconoReset |
| Threshold Voltage | 3.06V |
| Type | Simple Reset/Power-On Reset |
| Undervoltage Threshold | 2.98V |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS1817-5+ Datasheet
Download the complete datasheet for Maxim DS1817-5+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

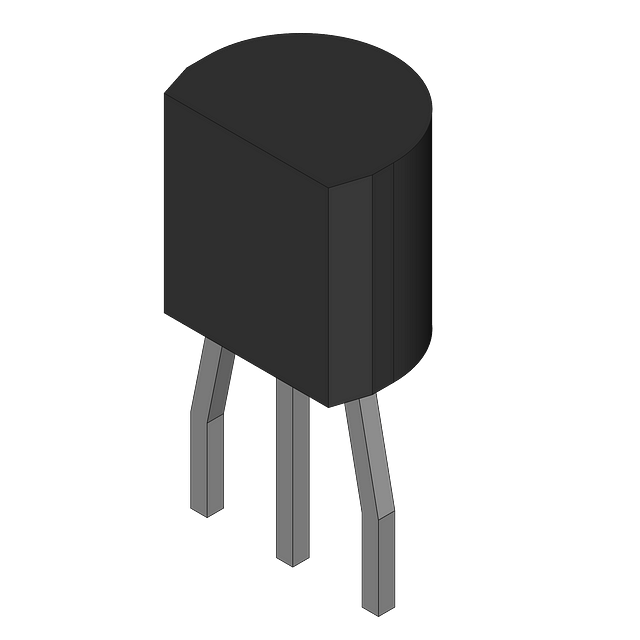

Product Images
