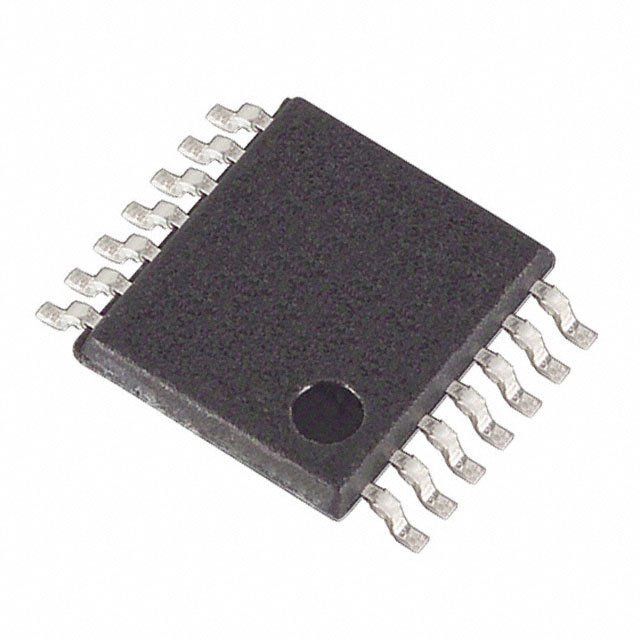

The DS1855E-010/T&R is a dual 10kR linear potentiometer with an I2C interface. It operates over a temperature range of -40°C to 85°C and is supplied with a voltage between 2.7V and 5.5V. The device is available in a TSSOP package and is not RoHS compliant due to containing lead. It has a supply current of 500uA and a tolerance of 20%.
Checking distributor stock and pricing after the page loads.
Maxim DS1855E-010/T&R technical specifications.
| Package/Case | TSSOP |
| Interface | I2C |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 10kR |
| Resistor Type | Potentiometer |
| RoHS Compliant | No |
| Supply Current | 500uA |
| Taper | Linear |
| Tolerance | 20% |
| RoHS | Not CompliantNo |
No datasheet is available for this part.
