64-bit silicon serial number IC featuring a 1-Wire interface. This surface mount component operates within a 2.8V to 6V supply voltage range, consuming a maximum of 5uA. Housed in a 6-pin TSOC package with dimensions of 4mm (L) x 3.89mm (W) x 1.5mm (H), it supports operating temperatures from -40°C to 85°C and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS2401P+ technical specifications.
General
| Data Bus Width | 64b |
| Height | 1.5mm |
| Interface | 1-WIRE |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5uA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Width | 3.89mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS2401P+ Datasheet
Download the complete datasheet for Maxim DS2401P+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

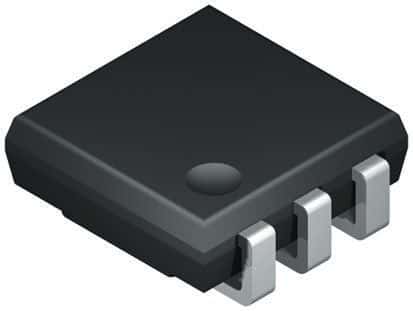

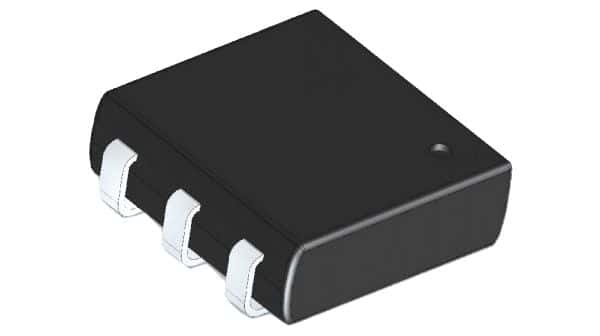

Product Images
