8-bit addressable switch serial interface IC, featuring 8 I/Os and a low-level output current of 20mA. Surface mountable in a 16-pin SOIC package (10mm L x 4mm W x 1.5mm H), operating from a 2.8V to 5.25V supply. Offers a quiescent current of 1µA and a supply current of 1µA, with an operating temperature range of -40°C to 85°C. This RoHS compliant component is supplied on a rail/tube.
PackageSO
Current1uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS2408S+ technical specifications.
General
| Package/Case | SO |
| Height | 1.5mm |
| Lead Free | Lead Free |
| Length | 10mm |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of I/Os | 8 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS2408S+ Datasheet
Download the complete datasheet for Maxim DS2408S+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

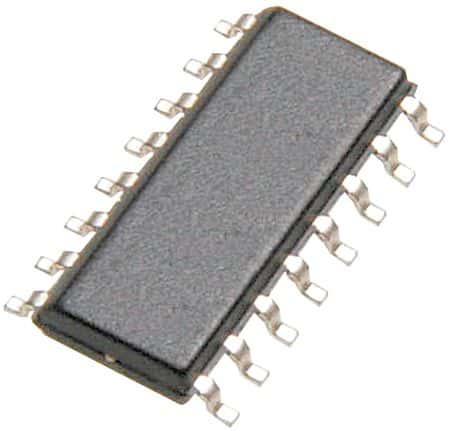

Product Images
