1Kb EEPROM memory IC featuring a 1-WIRE serial interface. Organized as 256 x 4 bits, this component operates from a 4.5V to 5.25V supply range with a typical 5V programming voltage. It offers a wide operating temperature range from -40°C to 125°C and is supplied in a 6-pin TSOC package. This RoHS compliant memory solution is suitable for various electronic applications.
Quick Jump:
Technical Specifications
Maxim DS2431P-A1+ technical specifications.
General
| Density | 1Kb |
| Interface | Serial, 1-WIRE |
| Max Operating Temperature | 125°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Operating Supply Voltage | 5V |
| Organization | 256 x 4 |
| Package Quantity | 120 |
| Packaging | Rail/Tube |
| Programming Voltage | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS2431P-A1+ Datasheet
Download the complete datasheet for Maxim DS2431P-A1+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

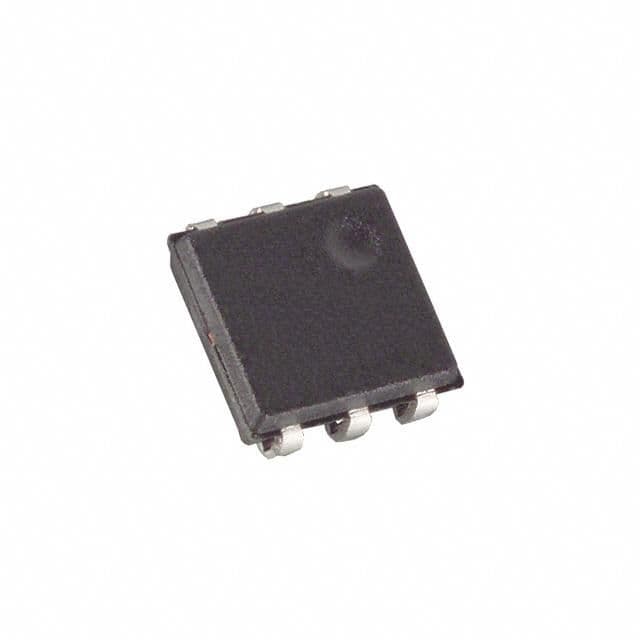

Product Images
