16Kb OTP EPROM memory IC with 64 pages x 256 bits, featuring a 1-WIRE serial interface. Access time is 15µs, with a voltage range of 2.8V to 6V. Packaged in a 3-pin TO-92 through-hole mount, this non-volatile memory operates from -40°C to 85°C and is RoHS compliant.
Sign in to ask questions about the Maxim DS2505+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim DS2505+ technical specifications.
| Access Time | 15us |

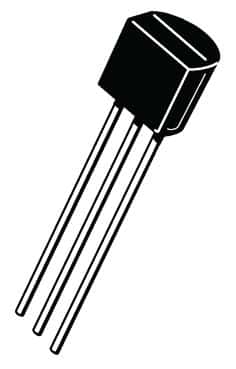

| Package/Case | TO-92 |
| Density | 16Kb |
| Height | 4.95mm |
| Interface | 1-WIRE, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 16Kb |
| Memory Type | Non-Volatile, , EPROM, EPROMs, OTP |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.8V |
| Mount | Through Hole |
| Operating Supply Current | 5uA |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Programming Voltage | 12V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.016oz |
| RoHS | Compliant |
