The DS3150QNC1+ is a single transceiver IC from Maxim, operating at a maximum data rate of 51.84Mbps. It is designed to function within a supply voltage range of 3.135V to 3.465V, with a maximum supply current of 110mA. This surface-mount device is packaged in a PLCC and is suitable for operation over a temperature range of -40°C to 85°C.
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim DS3150QNC1+ technical specifications.
General
| Package/Case | PLCC |
| Data Rate | 51.84Mbps |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 110mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Transceivers | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 37 |
| Packaging | Rail/Tube |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS3150QNC1+ Datasheet
Download the complete datasheet for Maxim DS3150QNC1+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

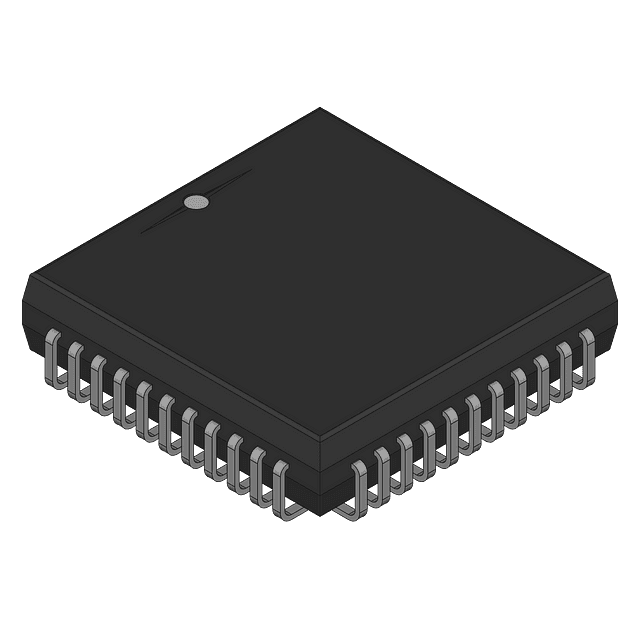

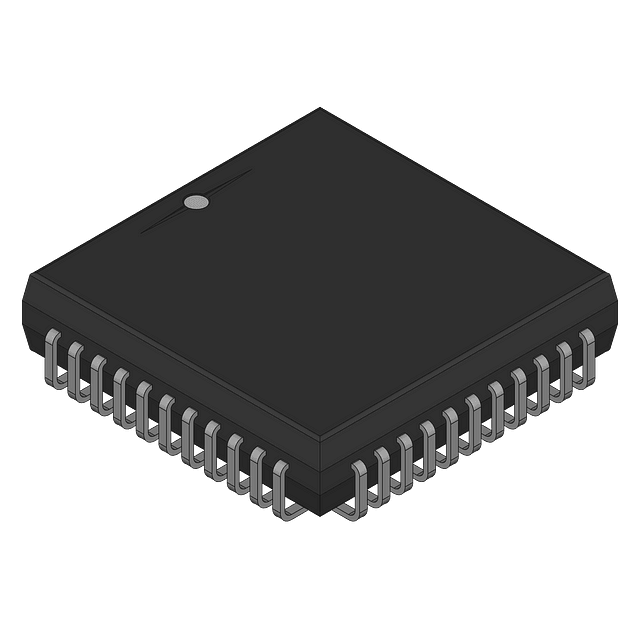

Product Images
