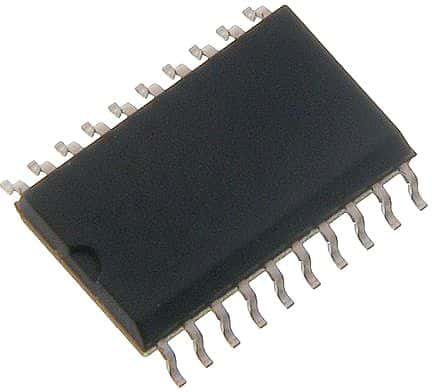

Surface mount Real-Time Clock (RTC) IC with SPI serial interface. Features a 32.8kHz frequency, 256B memory, and supports YY-MM-DD-dd date and HH:MM:SS time formats. Operates from 2V to 5.5V with a typical 3.3V supply voltage, functioning across 0°C to 70°C. Packaged in a 20-SOIC case, this RoHS compliant component is ideal for precise timekeeping applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS3234S# datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim DS3234S# technical specifications.
| Package/Case | SOIC |
| Date Format | YY-MM-DD-dd |
| Frequency | 32.8kHz |
| Height | 2.35mm |
| Interface | SPI, Serial |
| Length | 13mm |
| Logic Function | Clock |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256B |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 36 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | DS3234S |
| Time Format | HH:MM:SS |
| Weight | 0.028254oz |
| Width | 7.6mm |
| RoHS | Compliant |
