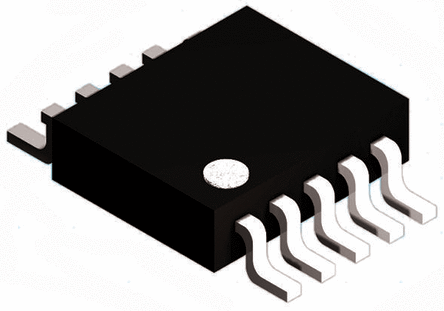

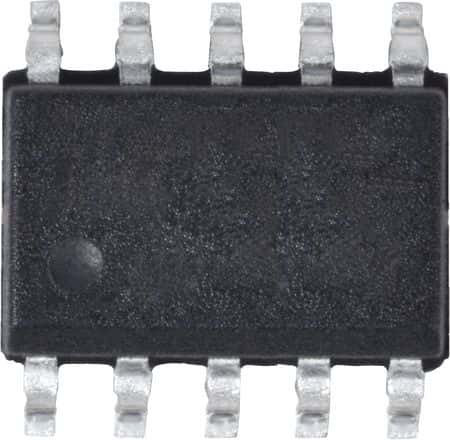

128-position, non-volatile digital potentiometer IC featuring a 10kΩ resistance and 20% tolerance. Operates with an I2C interface, supporting supply voltages from 2.7V to 5.5V and a maximum supply current of 60µA. Housed in a compact UMAX package with dimensions of 3.05mm x 3.05mm x 0.95mm, this component offers a wide operating temperature range of -40°C to 100°C. RoHS compliant for reliable integration into various electronic designs.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS3501U+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | UMAX |
| Height | 0.95mm |
| Interface | I2C |
| Length | 3.05mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Type | Non-Volatile, |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Taps | 128 |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 20% |
| Resistor Type | Potentiometer |
| RoHS Compliant | Yes |
| Series | DS3501U |
| Supply Current | 60uA |
| Taper | Linear |
| Tolerance | 20% |
| Width | 3.05mm |
| RoHS | Compliant |
