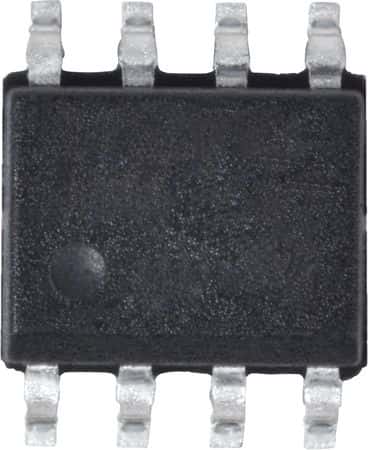

Analog temperature sensor in a compact SOP package, measuring 3.05mm x 3.05mm x 0.95mm. Features a wide operating temperature range from -40°C to 125°C with a supply voltage of 2.7V to 5.5V. Delivers an analog voltage output and operates with a typical supply current of 140µA. This lead-free, RoHS compliant component is designed for surface-mount termination.
Sign in to ask questions about the Maxim DS600U+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Maxim DS600U+ technical specifications.
| Package/Case | SOP |
| Height | 0.95mm |
| Interface | Analog |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 2.7V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Operating Supply Current | 140uA |
| Output | ANALOG |
| Output Type | Analog, Analog Voltage, PUSH-PULL |
| Output Voltage | 400mV |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 140uA |
| Termination | SMD/SMT |
| Voltage | 5V |
| Width | 3.05mm |
| RoHS | Compliant |
