8-bit microcontroller featuring an 8051 core architecture, operating at a maximum frequency of 25MHz. This through-hole component offers 64KB of memory, 32 programmable I/O pins, and includes a watchdog timer. It supports UART and EBI/EMI interfaces and operates within a 4.5V to 5.5V supply voltage range.
Frequency25MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim DS80C320-MCG+ technical specifications.
General
| Access Time | 25us |
| Address Bus Width | 8b |
| Package/Case | PDIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Height | 4.45mm |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 52.71mm |
| Max Frequency | 25MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 80C |
| Watchdog Timer | Yes |
| Width | 14.61mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS80C320-MCG+ Datasheet
Download the complete datasheet for Maxim DS80C320-MCG+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

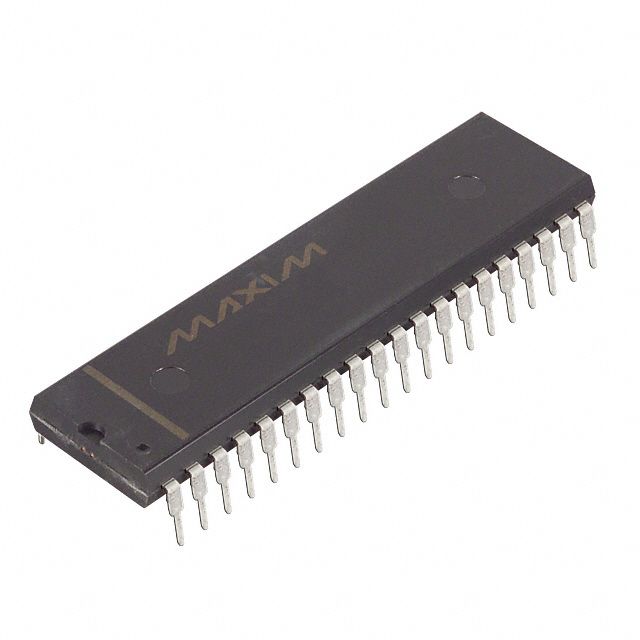

Product Images
