8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz. This integrated circuit offers 64KB of ROM and 64KB of RAM, with a data bus width of 8 bits. It includes 32 programmable I/O pins, three timers/counters, and interfaces for UART, USART, and EBI/EMI. Designed for industrial temperature ranges from -40°C to 85°C, it operates with supply voltages between 4.5V and 5.5V and is packaged in a PDIP with through-hole termination.
Frequency25MHz
PackagePDIP
Quick Jump:
Technical Specifications
Maxim DS80C320-MNG technical specifications.
General
| Access Time | 25us |
| Package/Case | PDIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 25MHz |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless, RAM |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 4.5V |
| Number of Bits | 8 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| RAM Size | 64KB |
| RoHS Compliant | No |
| Series | 80C |
| Termination | Through Hole |
Compliance
| RoHS | Not Compliant |
Datasheet
Maxim DS80C320-MNG Datasheet
Download the complete datasheet for Maxim DS80C320-MNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

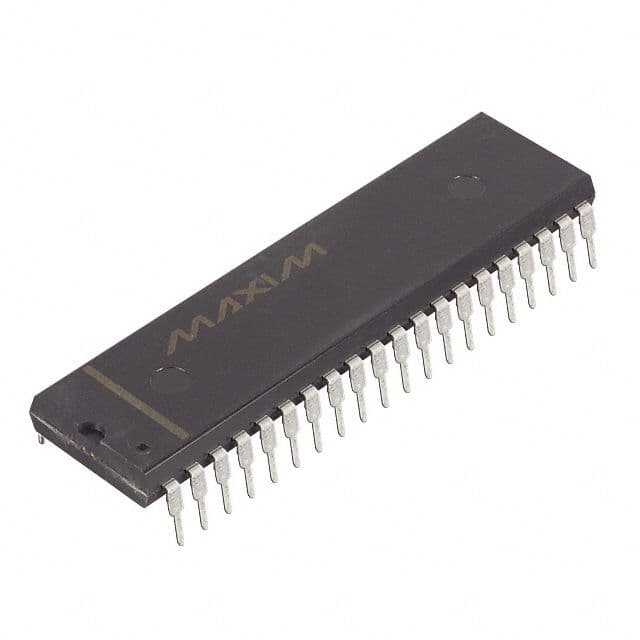

Product Images
