8-bit microcontroller featuring an 8051 core architecture operating at up to 18MHz. This integrated circuit offers 64KB of ROMless memory, 256 bytes of RAM, and 32 programmable I/O pins. Connectivity includes UART, USART, and EBI/EMI interfaces, along with three timers/counters and a watchdog timer. Designed for through-hole mounting in a PDIP package, it operates from 2.7V to 5.5V and is RoHS compliant.
Frequency18MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Maxim DS80C323-MCD+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Maxim DS80C323-MCD+ technical specifications.
General
| Access Time | 18us |
| Package/Case | PDIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 18MHz |
| Height | 4.45mm |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Lead Free |
| Length | 52.71mm |
| Max Frequency | 18MHz |
| Max Operating Temperature | 70°C |
| Memory Size | 64KB |
| Memory Type | ROM, , ROMless |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Through Hole |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 1 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT, POR |
| Radiation Hardening | No |
| RAM Size | 256B |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 80C |
| Watchdog Timer | Yes |
| Width | 14.61mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim DS80C323-MCD+ Datasheet
Download the complete datasheet for Maxim DS80C323-MCD+ to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

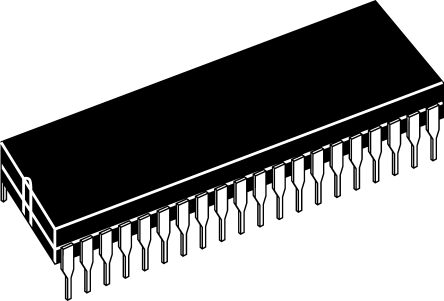

Product Images
