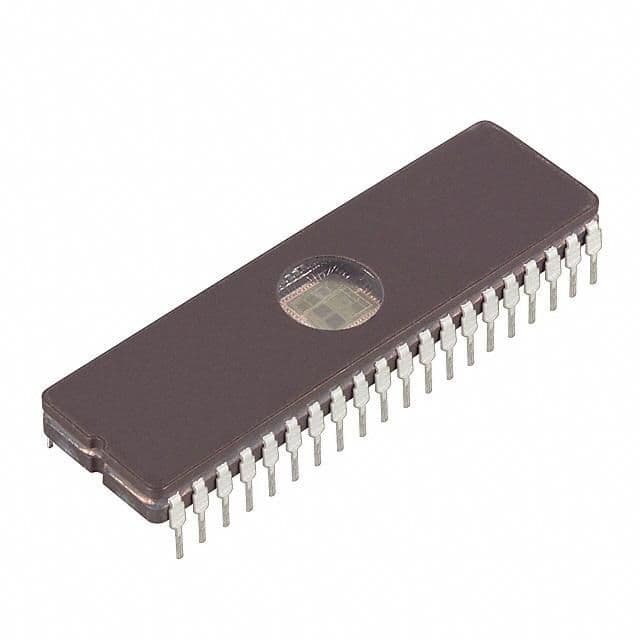

8-bit microcontroller (MCU) featuring an 8051 core architecture and 33MHz maximum frequency. This integrated circuit offers 16KB of EPROM and 1KB RAM, with an 8-bit data bus width and 32 programmable I/Os. Interfaces include UART, USART, and EBI/EMI, supported by three timers/counters and a WDT peripheral. Operates within a 4.5V to 5.5V supply voltage range, with an access time of 33µs and an operating temperature range of 0°C to 70°C. Packaged in a 40-pin DIP with through-hole termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS87C520-WCL datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 33us |
| Package/Case | DIP |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 33MHz |
| Interface | UART, USART, EBI/EMI |
| Lead Free | Contains Lead |
| Max Frequency | 33MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 16KB |
| Memory Type | EPROM, , RAM |
| Min Supply Voltage | 4.5V |
| Number of Bits | 8 |
| Number of I/Os | 32 |
| Number of Programmable I/O | 32 |
| Number of Timers/Counters | 3 |
| Oscillator Type | External |
| Packaging | Rail/Tube |
| Peripherals | WDT |
| Radiation Hardening | No |
| RAM Size | 1KB |
| RoHS Compliant | No |
| Series | 87C |
| Termination | Through Hole |
| RoHS | Not CompliantNo |
