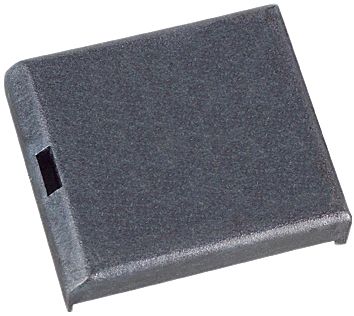

Real-time clock module with integrated crystal and non-volatile SRAM. Features a 3V output voltage and 3V power supply, operating from 0°C to 70°C. This surface mount component utilizes Lithium chemistry with a 130mAh capacity and is lead-free and RoHS compliant. Module dimensions are 23.5mm length, 0.85inch width, and 0.215inch height, weighing 1.8g.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim DS9034PCX+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacity | 130mAh |
| Package/Case | Module |
| Chemistry/Technology | Lithium |
| Height | 0.215inch |
| Lead Free | Lead Free |
| Length | 23.5mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Output Voltage | 3V |
| Packaging | Rail/Tube |
| Power Supply | 3V |
| RoHS Compliant | Yes |
| Termination | Power |
| Weight | 1.8g |
| Width | 0.85inch |
| RoHS | Compliant |
Download the complete datasheet for Maxim DS9034PCX+ to view detailed technical specifications.
