This DC/DC controller and regulator IC features an inverting logic function and operates as a charge pump or boost converter. It accepts an input voltage range of 1.5V to 10V and provides a fixed output voltage of 20V. The device supports a maximum output current of 20mA and a maximum output current of 225µA. Packaged in an 8-pin PDIP with through-hole mounting, this lead-free component operates within a temperature range of 0°C to 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim ICL7660CPA+ technical specifications.
General
Package/Case
PDIP
Height
4.45mm
Lead Free
Lead Free
Length
9.91mm
Logic Function
Inverting
Max Input Voltage
10V
Min Input Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
225uA
Max Output Voltage
20V
Min Output Voltage
3V
Max Supply Voltage
10V
Min Supply Voltage
1.5V
Mount
Through Hole
Number of Outputs
1
Output Current
20mA
Output Type
Fixed
Output Voltage
20V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
ICL7660C
Synchronous Rectifier
No
Topology
Boost, Charge Pump
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim ICL7660CPA+ Datasheet
Download the complete datasheet for Maxim ICL7660CPA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

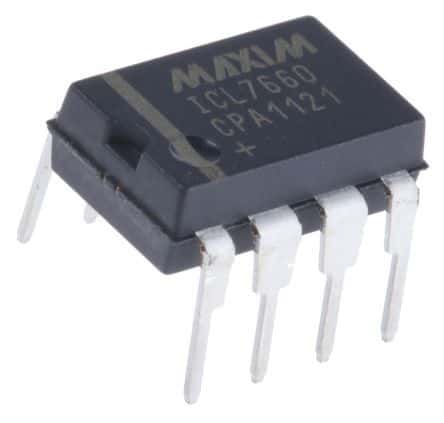

Product Images
