Technical Specifications
Maxim ICM7556ISD+ technical specifications.
General
| Package/Case | SOIC |
| Frequency | 500kHz |
| Height | 1.55mm |
| High Level Output Current | -2mA |
| Lead Free | Lead Free |
| Length | 8.75mm |
| Low Level Output Current | 3.2mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 300mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Timers/Counters | 2 |
| Operating Supply Current | 60uA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 75ns |
| Quiescent Current | 600uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Width | 5.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim ICM7556ISD+ Datasheet
Download the complete datasheet for Maxim ICM7556ISD+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

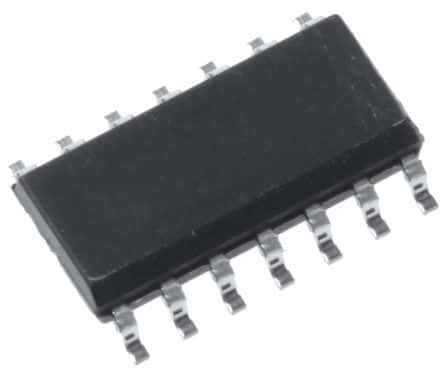

Product Images
